Technical Specification & Case Study
Comprehensive engineering analysis of our custom automated optical inspection cell.
System Overview
The SU2i Back Panel Vision Inspection machine is an advanced industrial Inspection System engineered by SSE Automation for Seoyon E HWA. Tailored to high-volume automotive component manufacturing, this machine automates the rapid optical verification of automotive back panel assemblies, performing a thorough 30 parts presence and colour inspection in 30 seconds.
The machine features high-resolution industrial smart vision cameras coupled with synchronized diffuse LED illumination to eliminate glare, shadowing, and ambient optical noise. In a single automated 30-second cycle, the system accurately detects 30 critical assembly parameters—including fastener insertion, component seating, bracket alignment, and multi-color part verification.
This system comes under our Inspection Systems portfolio and incorporates rigid profile fixturing, dual-hand safety actuation, instant visual Pass/Fail overlay on an industrial touchscreen HMI, and automated NG part lockout protocols.
Technical Specifications
- Project Name SU2i back panel vision inspection
- Customer / Client Seoyon E HWA
- Inspection Output 30 parts presence and colour inspection in 30 seconds
- System Category Inspection Systems
- Inspection Scope Part Presence, Seating Alignment & Multi-Point Colour Check
- Inspection Target 30 Critical Component Features Verified per Part
- Cycle Time 30 Seconds Complete Inspection Sequence
- Optical Architecture Multi-Camera High-Resolution Industrial Smart Sensors
- Illumination Polarized Diffuse LED Ring & Custom Backlight Arrays
- Part Fixturing Precision anti-scratch contoured profile nest with pneumatic lock
- HMI & Analytics Live touchscreen GUI with graphic Pass/Fail overlay & data logging
- Utility Requirements Electrical: 230V / Single Phase / 50Hz | Compressed Air: 6 BAR

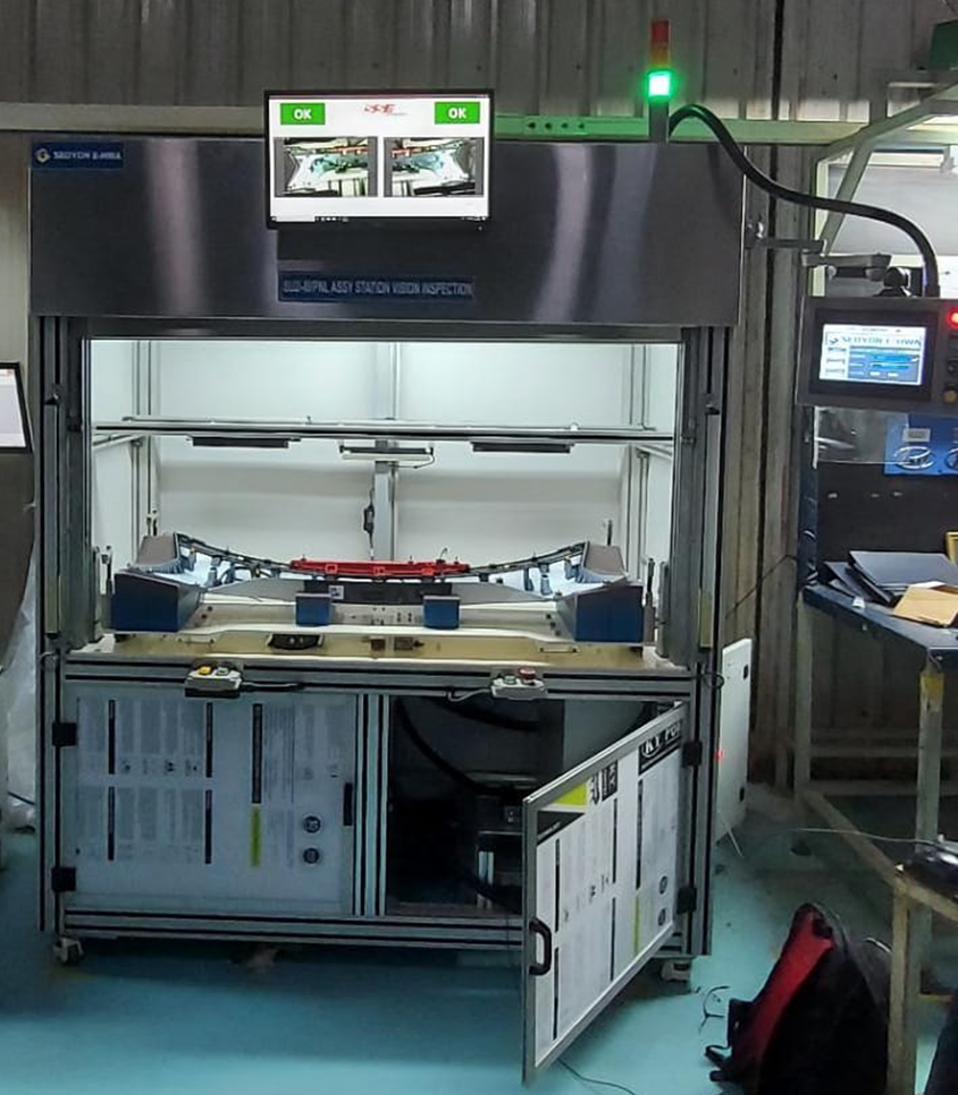

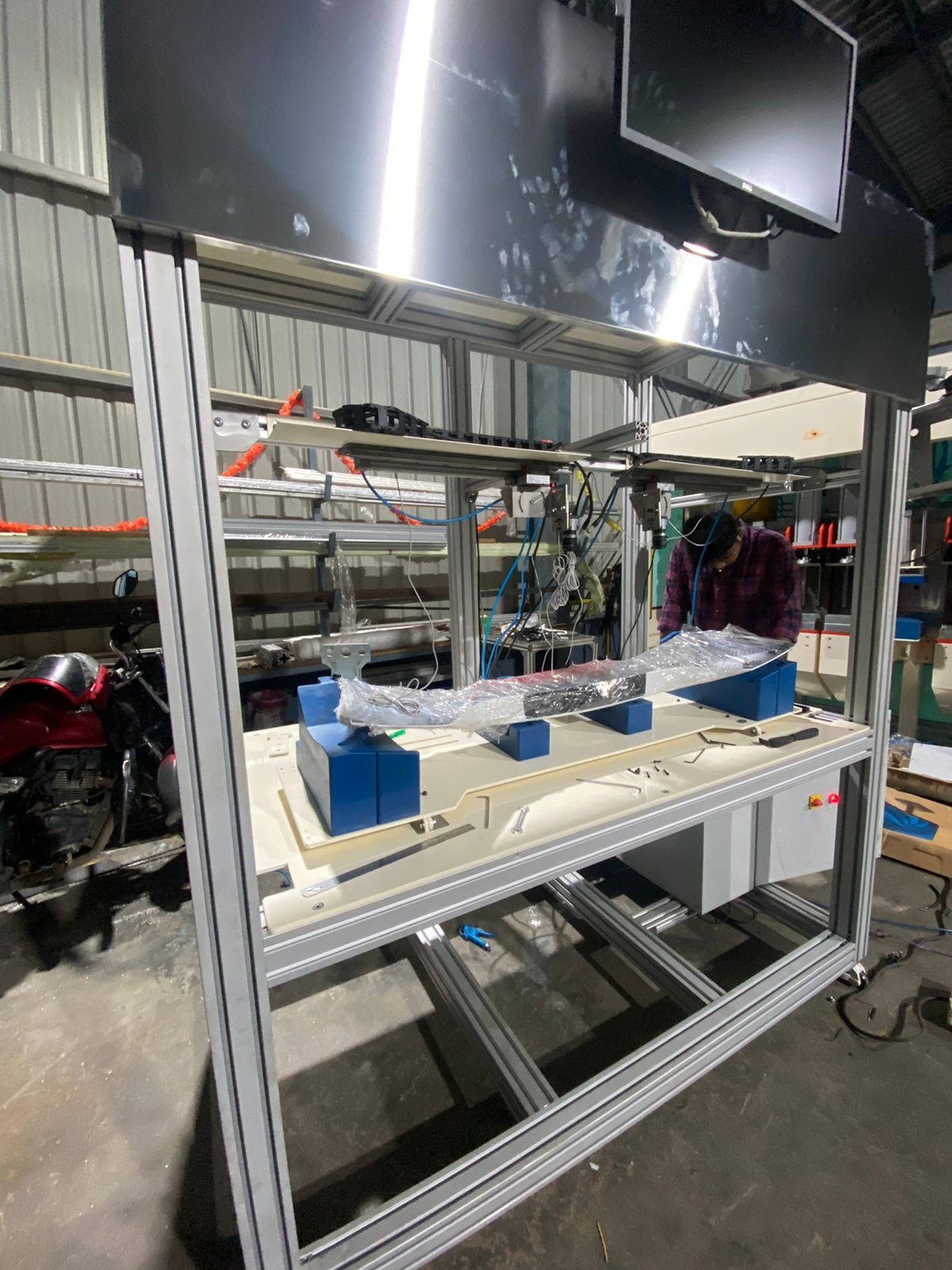

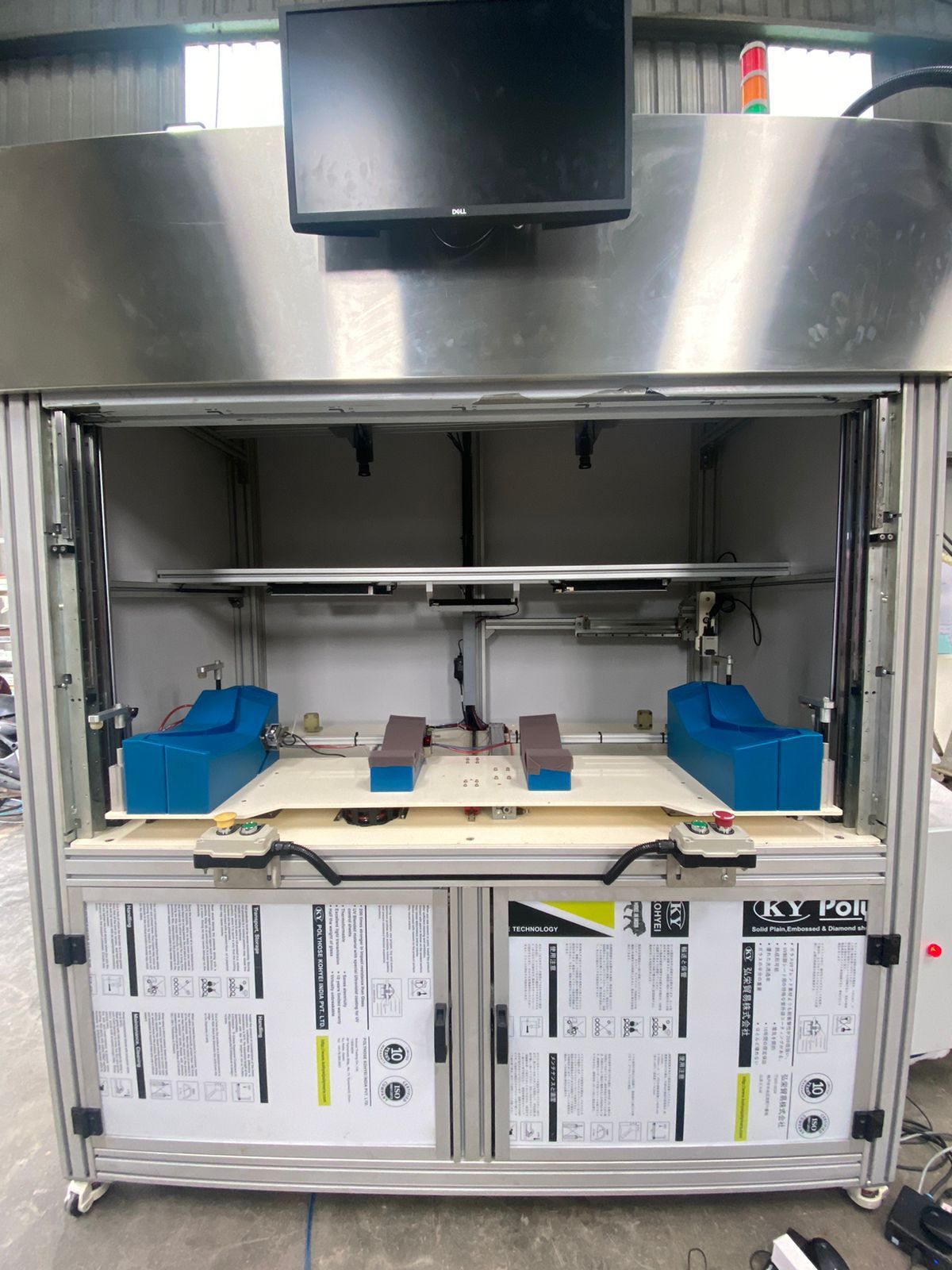

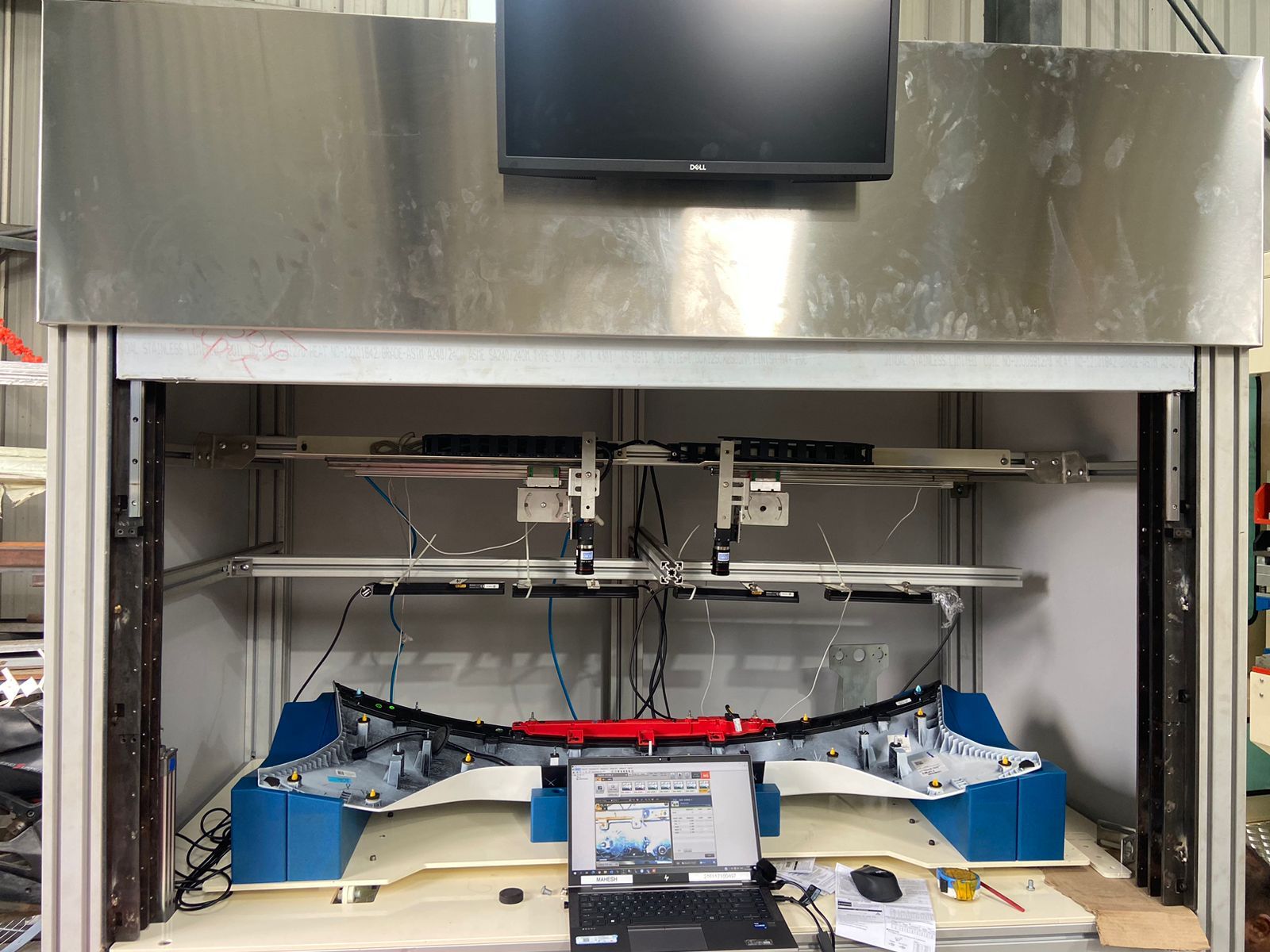

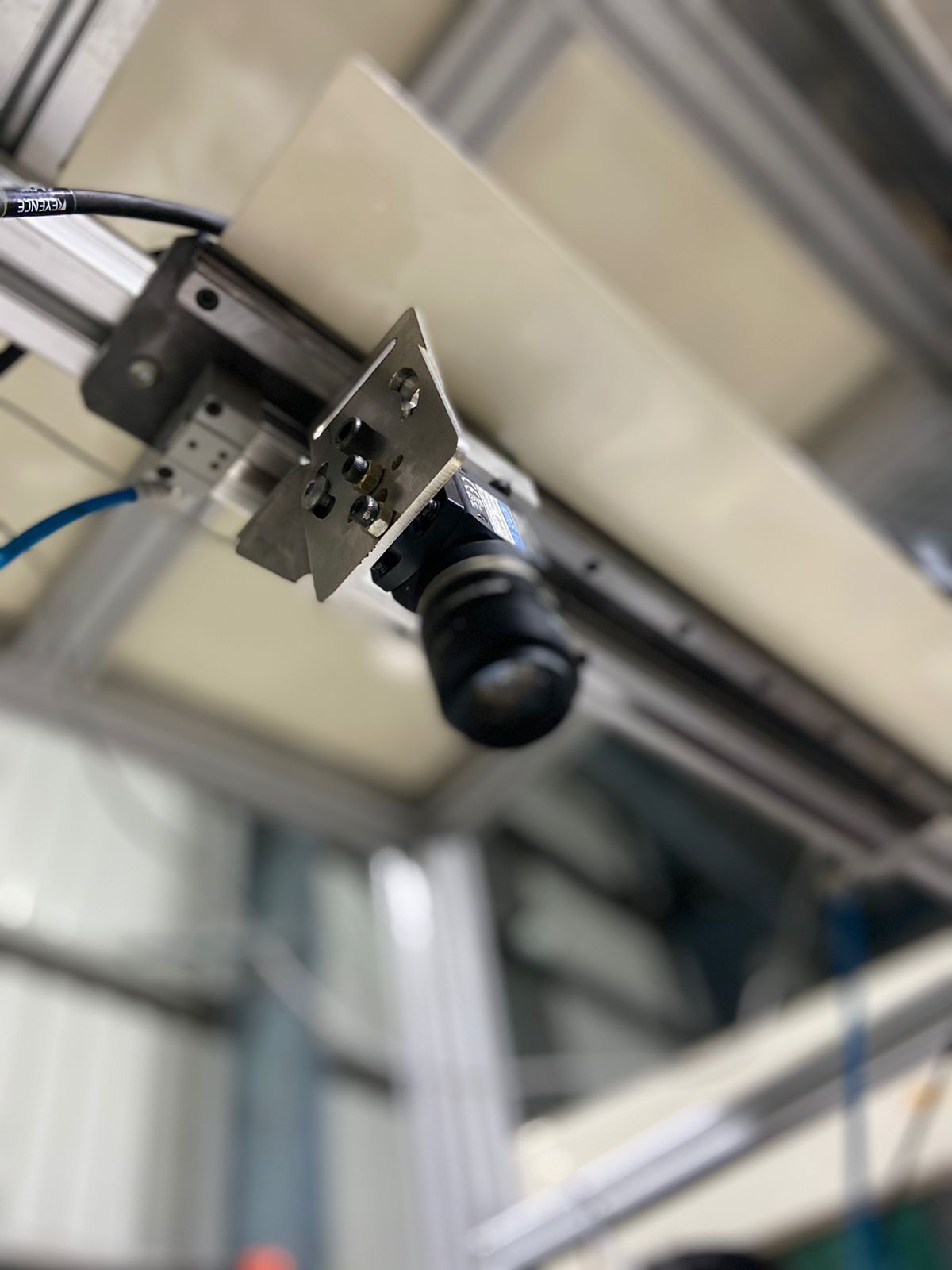

System Inspection Gallery
